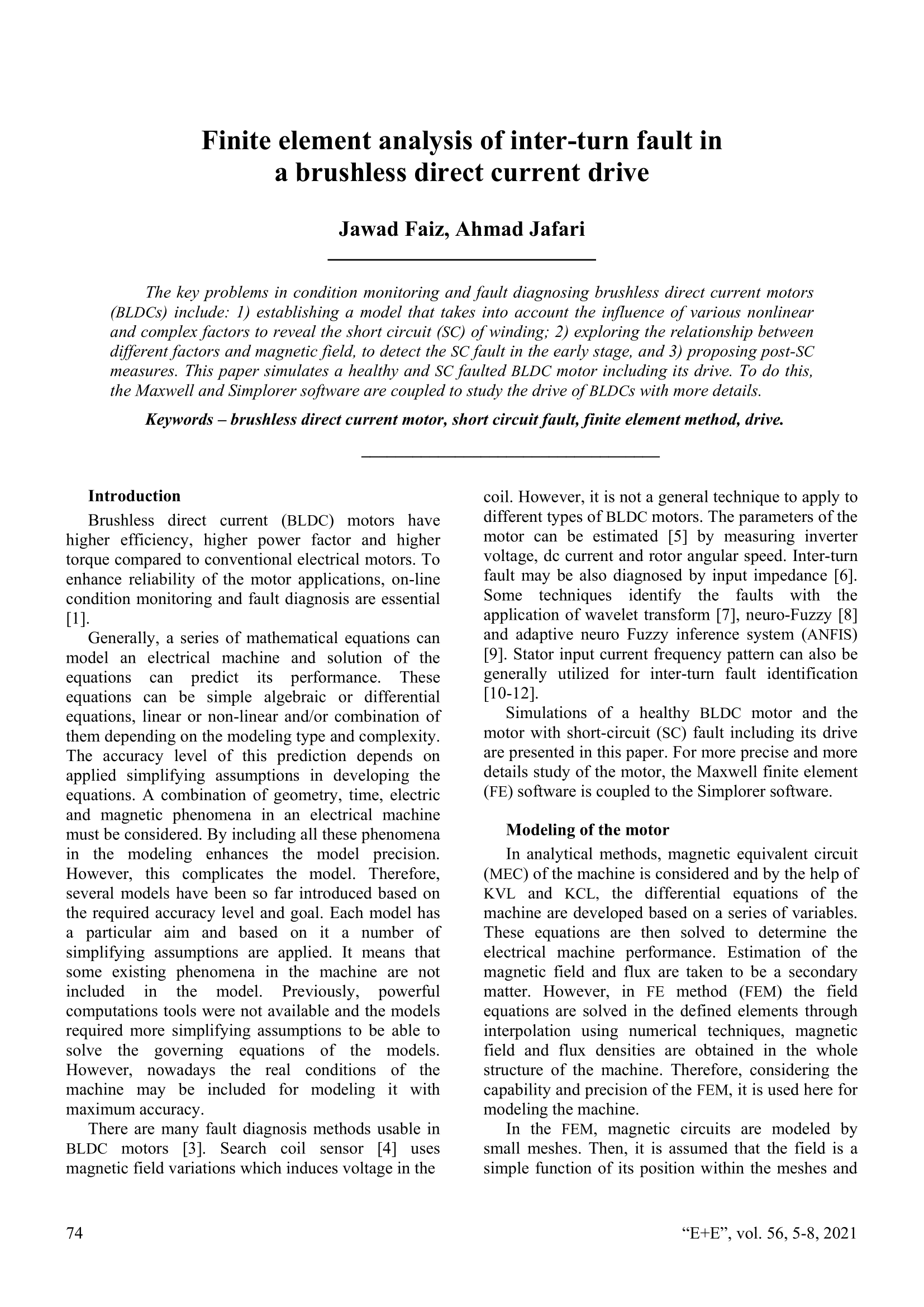

Finite element analysis of inter-turn fault in a brushless direct current drive
Jawad Faiz, Ahmad Jafari
The key problems in condition monitoring and fault diagnosing brushless direct current motors (BLDCs) include: 1) establishing a model that takes into account the influence of various nonlinear and complex factors to reveal the short circuit (SC) of winding; 2) exploring the relationship between different factors and magnetic field, to detect the SC fault in the early stage, and 3) proposing post-SC measures. This paper simulates a healthy and SC faulted BLDC motor including its drive. To do this, the Maxwell and Simplorer software are coupled to study the drive of BLDCs with more details.
Cite this article as:
Faiz J., Jafari A. Finite element analysis of inter-turn fault in a brushless direct current drive. Electrotechnica & Electronica (Е+Е), Vol. 56 (5-8), 2021, pp.74-80, ISSN: 0861-4717 (Print), 2603-5421 (Online)
